Qorvo QPG6200L Development Kit 01
(Redirected from Qorvo IoT Carrier Board QPG6200L)
Jump to navigation
Jump to search
This article describes specifics for the Qorvo QPG6200L development Kit 01 evaluation board.
The board consist of the following boards:
- IoT Carrier Board (GP20345)
- QPG6200L radio board (GP20212)
Preparing for J-Link
- Power the board via USB-C (J35).
- Connect the J-Link to Cortex Debug In (J21) or Cortex Debug+ETM In (J18).
Note:
Attention J-Link Pin 17 has to be connected to Pin 7 of J21 or J28 (QPG6200 GPIO5/PROG_ENn)
Attention J-Link Pin 17 has to be connected to Pin 7 of J21 or J28 (QPG6200 GPIO5/PROG_ENn)
- Disable the onboard debugger (J-Link OB) via shorting J22 and switch to the external debugger input connector by shorting J15.

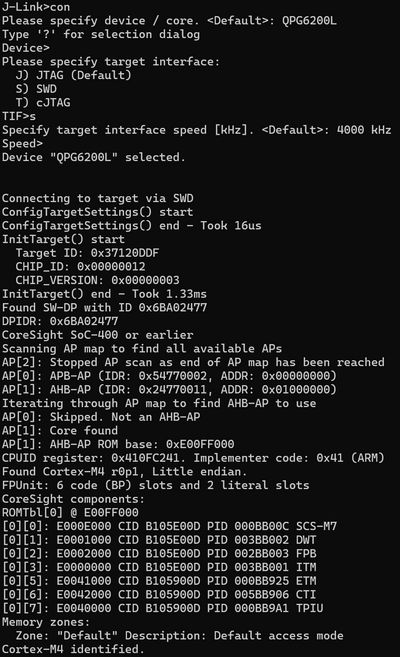

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
