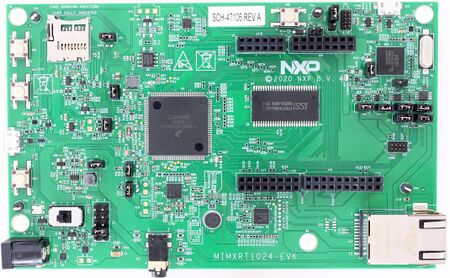

The is NXP MIMXRT1024-EVK is a i.MX RT1024 evaluation board.


Preparing for J-Link

  • Connect your J-Link to the JTAG header (J55)
  • Power the board via the power jack (J2)
  • Toggle the power switch (SW1) if necessary

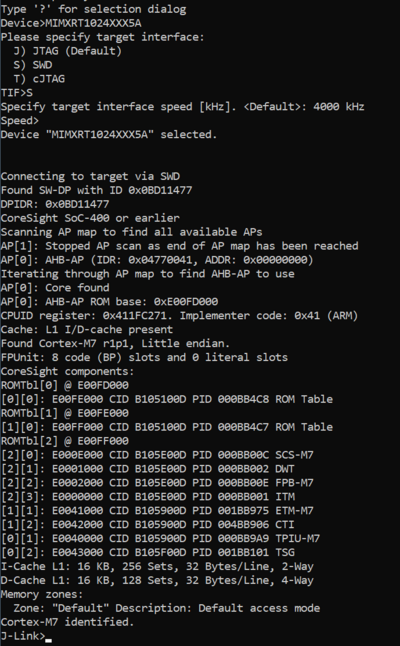

  • Verify the Connection with J-Link Commander. The output should look as follows:
 IMX1024 Connect.png
