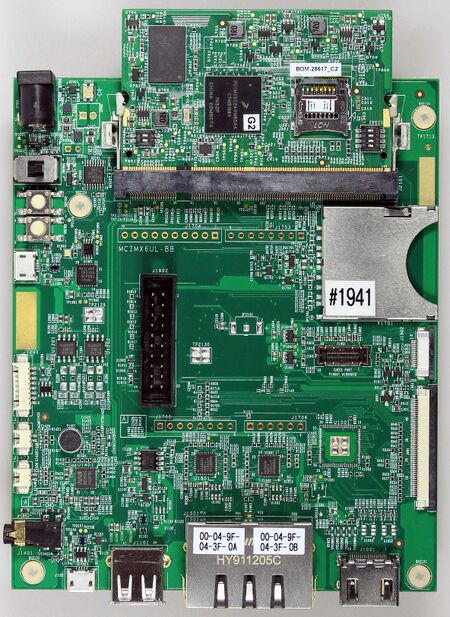

The NXP MCIMX6UL-BB is an evaluation board for the i.MX 6UL, i.MX 6ULL and i.MX 6ULZ family.
Enable debugging via JTAG
In order to use the enable to pins of the JTAG connector of the IMX6UL-EVK eval board, the following resistors need to be desoldered:
- R1407
- R1431-1434
and the following resistors need to be assembled:
- R1912-14
- R1916
Preparing for J-Link
- Connect your J-Link to the JTAG header (JP1902)
- Power the board via the power jack (J2001)
- Toggle the power switch (D2001) if necessary

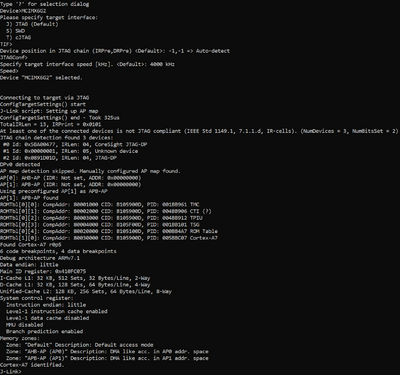

- Verify the Connection with J-Link Commander. The output should look as follows:
